Six-face detection equipment
Category：
- DESCRIPTION
-
- Commodity name: Six-face detection equipment
- Commodity ID: RK-IC-1500 Series
Brand : RKE Product origin : CHINA Delivery time : 30days Supply capacity : 600/year
Friendly reminder！
This equipment is a customized device, and the model is developed and customized according to customer requirements. This platform only provides the demonstration of the equipment's function. If you need to order screening equipment, please contact us via email or phone.
Email:crystal@chinarke.com Contact number:+86 181 2282 8293
1. Product introduction
· With the high transparency glass, the machine is designedfor the objects that can be steadily placed in the inspectionplate.

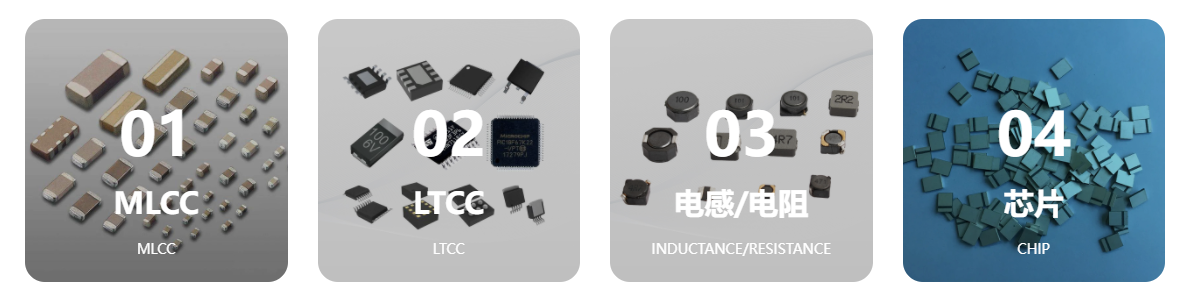

· Testing scope: Precision electronics， chip resistorscapacitors,inductors diodes, transistors, chip semiconductorceramics,optoelectronic ceramics,fixed ceramics,vacuumceramics, resistance matrix ceramics,
· insulator parts ceramics, ferroelectric ceramics,piezoelectricceramics magnetic ceramics and other polyhedral products.
· can detect product length, height, diameter, mixing.deformation,shortage, burrs, black spots,scratches,poorstitching, chipping, notches, printing, etc.

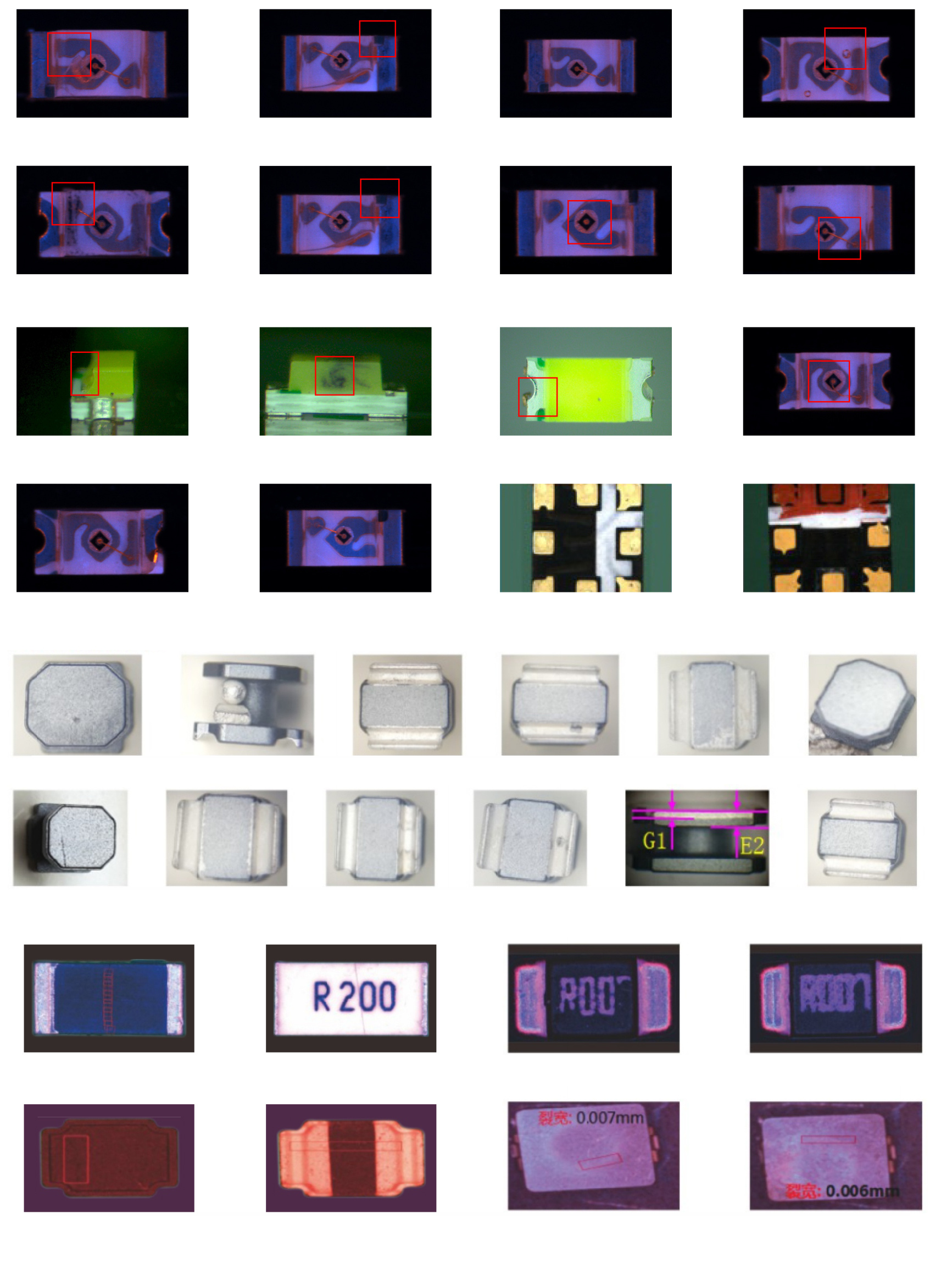

· This machine is a high-speed inspection equipment developed for electronic components. Depending on the size of the product, the detection speed can reach 3000-12000 pieces per minute.2. Capable of Detection:
3. Inspection parameters:It can detect appearance features such as scratches, notches, fragments, indentations, color variations, black spots, burrs, and dimensions.
And more!
4. Product parameters for the optical sorting machine
Model: RK-IC-1500 Series Fit Size (mm)
0105 、0201、0402、0603、0805、1206
Detection accuracy (mm)
+0.01
Check speed(pcs/min) 3000-12000 Barometric pressure (Kg/cm2)
7
Voltage (V)
220V
Rated power (w)
3000
Camera Industrial cameras Net weight(KGS) 580 Size 1000×950×1850(LWH) Description for CCD Screening:
Based on the requirements of the product to be inspected, 1-8 cameras can be configured. Theoretically, some dimensions and appearance features can be shared. 5.Advantages of a six-sided high-speed inspection machine:
1. High-speed motor control: The maximum speed can reach 12,000 pcs/min.
2. High-speed sorting: Millisecond-level high-speed electromagnetic valve blowing speed ensures that each component is accurately and correctly placed in the corresponding unloading box.
3. High-speed imaging: High-speed AI computing processing mode achieves image processing capability of 12,000 pcs/min with six sets of cameras, ensuring real-time detection and processing.
4. High-precision imaging system: MAX resolution of micrometers/pixel achieves accurate detection of ultra-small components.
5. High-precision discharge control: High-speed motion optical inspection glass plate achieves precise "sniping" even for components as small as 0.2mm.
